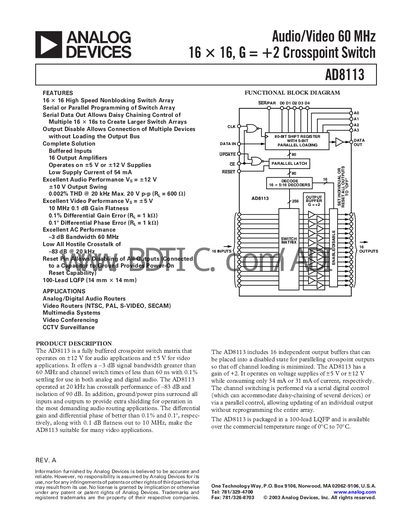

AD8113 is a 16x16 crosspoint switch produced by Analog Devices, which supports 60MHz frequency and can be programmed in serial or parallel. It supports multiple device connections.
The AD8113 is a fully buffered 16 × 16 crosspoint switch matrix designed for audio and video routing. It supports both serial and parallel programming, allows daisy‑chaining of multiple devices, and includes independent output buffers that can be disabled to minimise loading.
Key specifications include a -3 dB bandwidth of 60 MHz, supply voltage range 4.5 V–12.6 V, low supply current (31 mA–54 mA), and excellent crosstalk performance (-83 dB at 20 kHz). The device is packaged in a 100‑lead LQFP (14 mm × 14 mm) and operates over a commercial temperature range of 0 °C to 70 °C.
| -3 dB Bandwidth | 60 MHz |
|---|---|
| Supply Voltage Range (AVcc) | 4.5 V – 12.6 V |
| Crosstalk (20 kHz) | -83 dB |
| Total Harmonic Distortion (20 kHz) | 0.002 % |
| Gain Flatness | 0.1 dB |
| Enable On Time | 80 ns |
The AD8113 can be powered from +5 V for video applications or +12 V for audio applications, with an AVcc range of 4.5 V to 12.6 V.
The device has a -3 dB bandwidth of 60 MHz.
It can be programmed via a serial digital control interface or through parallel data inputs, and supports daisy‑chaining of multiple devices.
Crosstalk is -83 dB at 20 kHz.
