The AD8110/AD8111 16 / 8 buffered video crosspoint switches are high-speed, nonblocking switch arrays that feature serial or parallel switch array control and excellent video performance, AC performance, and low power.
The AD8110 and AD8111 are high‑speed 16 × 8 video cross‑point switch matrices offering a -3 dB bandwidth of 260 MHz, low power consumption (50 mA idle) and eight independent output buffers. They support serial or parallel control, daisy‑chaining, and operate from a 5 V supply over an extended temperature range.

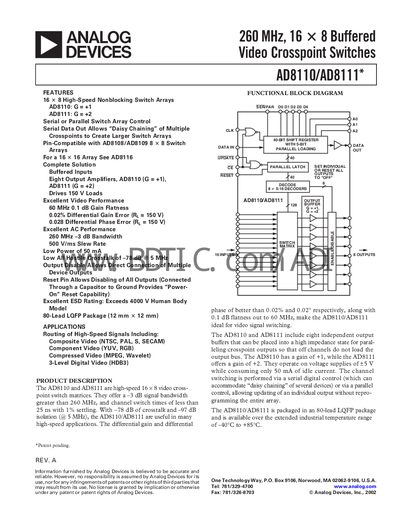

The document provides full electrical specifications, timing diagrams for both serial and parallel modes, pin descriptions, absolute maximum ratings, and ordering information for the 80‑lead LQFP package.
| -3 dB Bandwidth | 260 MHz |
|---|---|
| Supply Current (AVCC, outputs enabled, no load) | 38 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Output Current | 20 mA – 40 mA |
| Supply Voltage Range | 4.5 V to 5.5 V |
The device operates from 4.5 V to 5.5 V.
It can be used from –40 °C up to +85 °C.
The AD8110/AD8111 include eight independent output buffers.
Channel switch times are less than 25 ns with 1 % settling.
