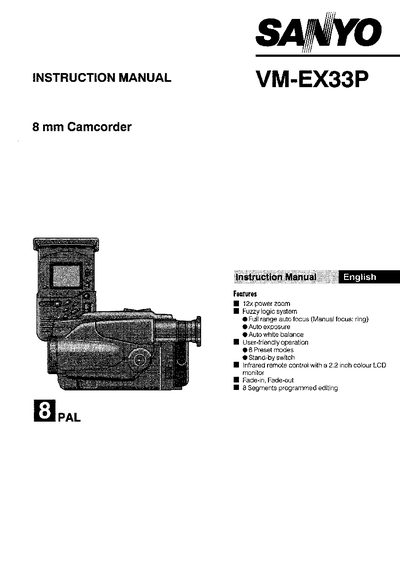

View and download the SANYO VM-EX33P camcorder manual for free. This document provides instructions for operating the SANYO VM-EX33P video camcorder, including setup, recording, playback, and maintenance guidelines.
This manual covers the features and operation of the Sanyo VM-EX33P 8 mm camcorder, including its 12× power zoom, fuzzy‑logic auto focus, auto exposure, and infrared remote control with a 2.2‑inch colour LCD. It explains basic recording steps, preset modes, manual focus, zooming, and programmed editing using the remote control, as well as how to set the date and time and use the playback functions.
Safety information addresses condensation protection, handling warnings, battery charging with the supplied AC adaptor, and proper storage. Detailed specifications for video, audio, power, dimensions, and environmental limits are listed in the specifications section.
| Television system | PAL, CCIR |
|---|---|
| Video recording system | Rotating 2-head, helical-scan system |
| Audio recording system | Rotating head, FM system |
| Cassette type | 8 mm video cassette tape |
| Tape speed | SP approx. 20.051 mm/sec. |
| Maximum recording time | 90 minutes (P5-90 cassette) SP mode |
| Image sensor | CCD solid‑state type (320,000 pixels) |
| Lens | 12× power zoom F1.8 (f=5.5 to 66 mm) |
| Dimensions (W × H × D) | 119 × 111 × 208 mm |
| Weight | Approx. 790 g (excluding battery pack, LCD monitor and tape) |
| Power consumption | 5.4 W during camera recording |
| Storage temperature range | -20 °C to 60 °C (-4 °F to 140 °F) |
| Microphone | Electret condenser type, omnidirectional |
| Video output | 1 Vp‑p, 75 Ω unbalanced, negative sync |
| Audio output | -7 dB, 2.2 kΩ or less |
