The document describes the features and characteristics of ADI products from BDTI C company.

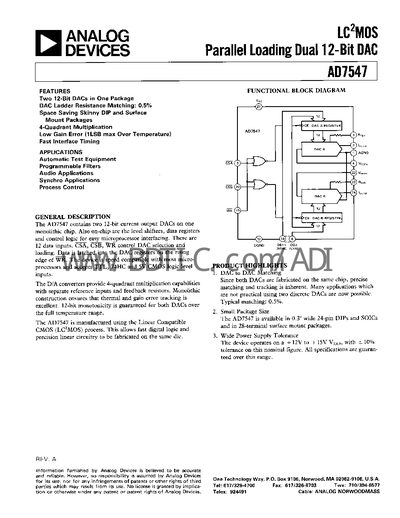

The AD7547 is a dual 12‑bit current‑output DAC that includes on‑chip level shifters, data registers and control logic for easy microprocessor interfacing. It offers 4‑quadrant multiplication, low gain error, and fast interface timing, making it suitable for test equipment, audio, synchro, and process‑control applications.
The document provides a functional block diagram, pin‑out tables, timing characteristics, electrical specifications, and example circuits for both unipolar and bipolar operation. It also includes layout recommendations, microprocessor interface examples for 8086 and 68000, and application hints such as programmable state‑variable filters and single‑supply operation.
| Resolution | 12 bits |
|---|---|
| Power Supply Voltage | +12 V to +15 V (±10 % tolerance) |
| Input High Voltage (Vi) | 24 V |
| Input Low Voltage (Vi‑) | 0.8 V |
| Gain Error | ±6 LSB max |
| Operating Temperature Range | -40 °C to +85 °C (commercial grades) |
| Package Options | 24‑pin DIP, SOIC, 28‑terminal surface‑mount |
The AD7547 operates from +12 V to +15 V with a ±10 % tolerance on the nominal voltage.
The AD7547 provides a 12‑bit resolution for each DAC channel.
The device is offered in 24‑pin DIP, SOIC, and 28‑terminal surface‑mount packages.
Commercial versions operate from –40 °C to +85 °C, while industrial versions extend to +125 °C.
