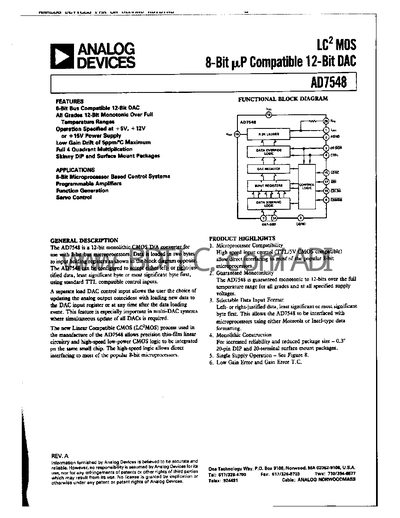

The AD7548 is an 8‑bit bus‑compatible, 12‑bit DAC offered in both DIP and surface‑mount packages. It provides monotonic performance over the full temperature range and supports single‑supply operation at +5 V, +12 V or +15 V. The document includes functional block diagrams, pin configurations, and recommended application circuits.
Key sections cover detailed specifications (resolution, accuracy, gain temperature coefficient), timing characteristics, data loading methods (automatic and strobed transfer), and example interfacing to a 6502 microprocessor. Guidance on layout, grounding, and high‑frequency considerations is also provided.
It can be powered from +5 V, +12 V, or +15 V.
The device is offered in a 0.3" 20‑pin DIP and a 20‑terminal surface‑mount package.
