AD22100 is a temperature sensor from Analog Devices. It has a temperature range of 200°C, an accuracy better than ±2% of full scale, a linearity better than ±1% of full scale, a temperature coefficient of 22.5 mV/°C, and an output proportional to temperature × V+. It can be operated in a single-supply mode, supports reverse voltage protection, and has minimal self-heating and a high-level, low-impedance output. It is ideal for use in HVAC systems, system temperature compensation, board-level temperature sensing, and electronic thermostats.
The AD22100 is a monolithic ratiometric temperature sensor with on‑chip signal conditioning. It operates from –50 °C to +150 °C and provides a voltage output proportional to temperature and supply voltage, simplifying interfacing to ADCs.

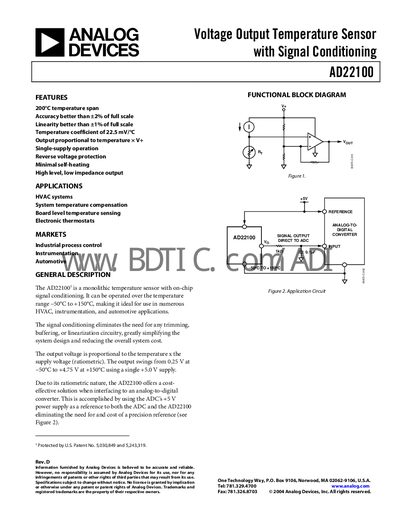

The document includes electrical specifications, absolute maximum ratings, pin descriptions for TO‑92 and SOIC packages, typical performance curves, mounting guidelines, and an ordering guide for the various package options.
| Operating Temperature Range | –50 °C to +150 °C |
|---|---|
| Quiescent Current | ≈ 500 µA |
| Nominal Output Voltage at 0 °C | 1.375 V (V+ =5 V) |
| Temperature Coefficient | 22.5 mV/°C |
The AD22100 operates from –50 °C to +150 °C.
The short‑circuit current limit is about 7 mA, but keeping the load current below 1 mA gives the best accuracy.
