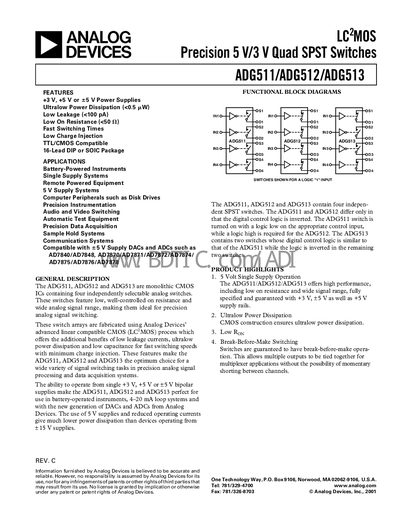

ADG511/ADG512/ADG513 are low power, low leakage, low on resistance monolithic CMOS switches that operate from +3 V, +5 V or -5 V power supplies. Their features include low, well-controlled on resistance and wide analog signal range, making them ideal for applications requiring low power and high precision, such as battery powered instruments, single supply systems, remote powered equipment, 5 V supply systems, computer peripherals, precision instrumentation, audio and video switching, automatic test equipment, precision data acquisition, sample hold systems and communication systems.
The ADG512 is a precision 5 V quad SPST analog switch from Analog Devices, built in a CMOS process that provides low on‑resistance, ultralow power dissipation, and TTL/CMOS compatible inputs. It is available in 16‑lead DIP, SOIC, and Cerdip packages.
The device operates from single +3 V or +5 V supplies (or dual +5 V), offers break‑before‑make switching, low leakage currents, and is intended for battery‑powered instruments, data‑acquisition, communication systems, and other precision analog applications.
| Supply Voltage (Dual) | +5 V ±10% / Vss = –5 V ±10% |
|---|---|
| Break‑Before‑Make Time | 100 ns typical |
| Power Dissipation (Plastic DIP) | 470 mW |
It can operate from single +3 V, +5 V, or dual +5 V supplies.
