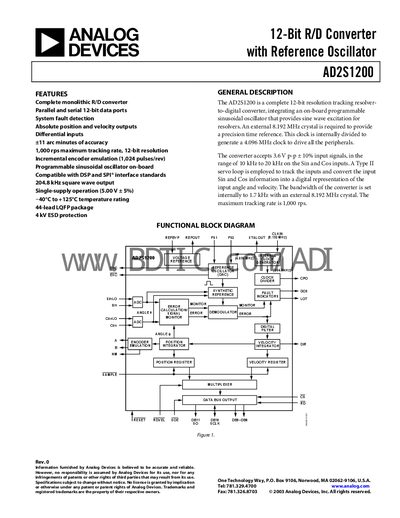

AD2S1200 is a complete 12-bit resolution tracking resolver- to-digital converter, integrating an on-board programmable sinusoidal oscillator that provides sine wave excitation for resolvers. An external 8.192 MHz crystal is required to generate the sine wave signal.
The AD2S1200 integrates a 12‑bit resolver‑to‑digital converter, on‑board programmable sinusoidal oscillator, and both parallel and serial 12‑bit data ports. It operates from a single 5.00 V supply and provides absolute position, velocity, and incremental encoder emulation outputs.
Designed for automotive and industrial applications such as electric power steering and motion sensing, the device offers +11 arc‑minute angular accuracy, a 1,000 rps maximum tracking rate, and built‑in fault detection for loss of signal or out‑of‑range inputs.
| Supply Voltage | 5.00 V ±5% |
|---|---|
| Resolution | 12 Bits |
| Angular Accuracy | +11 arc min |
| Bandwidth | 2 kHz |
| Maximum Tracking Rate | 1,000 rps |
| Data Interfaces | Parallel and serial 12‑bit ports |
The device can track up to 1,000 rps.
It operates from a single 5.00 V supply with a ±5% tolerance.
The angular accuracy is +11 arc minutes (zero‑acceleration Y grade).
The converter provides both parallel and serial 12‑bit data ports.
