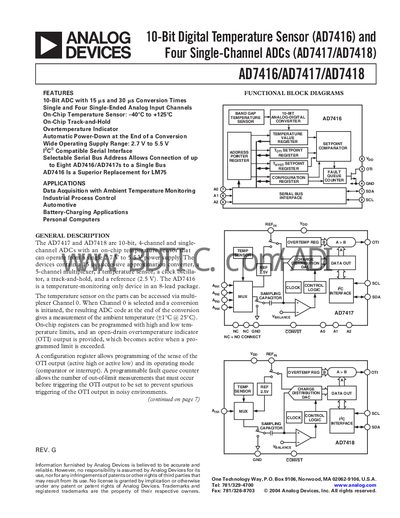

The document provides information about the features and characteristics of the REV. G AD7416/AD7417/AD7418 10-Bit Digital Temperature Sensor (AD7416) and Four Single-Channel ADCs (AD7417/AD7418).
The AD7417 is a 10‑bit, four‑channel analog‑to‑digital converter that includes an on‑chip temperature sensor, reference, and a compatible serial interface. It operates from a 2.7 V to 5.5 V supply and offers automatic power‑down for low‑power applications.
Key features include selectable serial bus addresses for up to eight devices on one bus, an over‑temperature indicator, and programmable fault‑queue handling. The device is offered in 16‑lead SOIC and TSSOP packages, while the related AD7416 and AD7418 use 8‑lead packages.
| Resolution | 10 bits |
|---|---|
| Supply Voltage Range | 2.7 V to 5.5 V |
| Analog Input Channels | 4 single‑ended channels |
| Temperature Sensor Range | -40 °C to +125 °C |
| Conversion Time | 15 µs (30 µs for temperature sensor) |
The AD7417 operates from 2.7 V up to 5.5 V.
It provides four single‑ended analog input channels.
The on‑chip temperature sensor measures from –40 °C to +125 °C.
A conversion takes 15 µs for analog channels and 30 µs for the temperature sensor.
