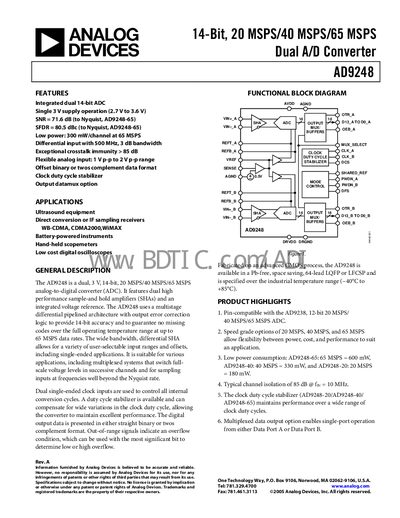

The AD9248 is a dual, 3V, 14-bit, 20 MSPS/40 MSPS/65 MSPS analog-to-digital converter (ADC). It features dual high performance sample-and hold amplifiers (SH) and other characteristics and features.
The AD9248 is a dual, 3 V, 14‑bit analog‑to‑digital converter that supports sample rates of 20, 40 and 65 MSPS. It features dual high‑performance sample‑and‑hold amplifiers, an integrated voltage reference, and a clock‑duty‑cycle stabilizer for reliable operation over a wide range of clock conditions.
The device is supplied in 64‑lead LOFP or LFCSP packages, operates from a 2.7 V to 3.6 V supply, and is rated for industrial temperature ranges (‑45 °C to +85 °C). It is suited for ultrasound equipment, high‑speed oscilloscopes, battery‑powered instruments, and other high‑performance data‑acquisition applications.
| Resolution | 14 bits |
|---|---|
| Maximum Sample Rate | 65 MSPS |
| Power Consumption (65 MSPS) | 600 mW |
| Input Span (single‑ended) | 1 V p‑p or 2 V p‑p |
| Signal‑to‑Noise Ratio (65 MSPS) | 71.6 dB |
| Spurious‑Free Dynamic Range (65 MSPS) | 80.5 dBc |
| Crosstalk Immunity | > 85 dB |
The AD9248 can sample at up to 65 MSPS.
At 65 MSPS the device consumes about 600 mW.
The ADC accepts either a 1 V p‑p or a 2 V p‑p single‑ended input range.
