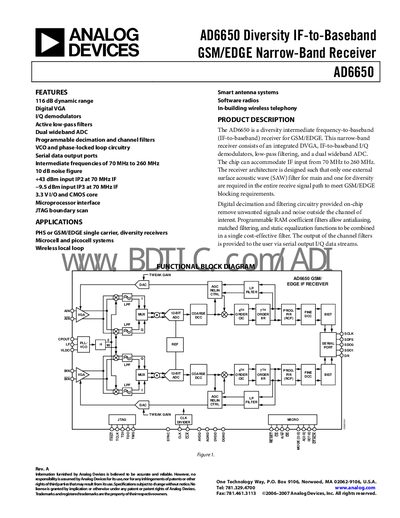

The AD6650 is a diversity intermediate frequency-to-baseband (IF-to-baseband) receiver for GSM/EDGE.
The AD6650 is a diversity intermediate‑frequency‑to‑baseband receiver designed for GSM/EDGE applications. It integrates a digital VGA, I/Q demodulators, low‑pass filters, and dual wideband ADCs, supporting IF inputs from 70 MHz to 260 MHz. The device includes programmable decimation and channel filters, a VCO/PLL, and serial data output ports.
Key specifications include a 116 dB dynamic range, 10 dB noise figure, +43 dBm input IP2, –9.5 dBm input IP3, and a 3.3 V power supply. The AD6650 is suited for PHS/GSM‑EDGE single‑carrier diversity receivers, microcell and picocell systems, wireless local loop, smart antenna systems, software radios, and in‑building wireless telephony.
| Frequency Range | 70 MHz – 260 MHz |
|---|---|
| Dynamic Range | 116 dB |
| Noise Figure | 10 dB |
| Gain Step Size | 0.094 dB |
| AGC Range | 36 dB |
| Input IP2 | +43 dBm (70 MHz IF) |
| Input IP3 | –9.5 dBm (70 MHz IF) |
| Power Supply | AVDD/DVDD 3.3 V (3.0‑3.45 V range) |
| Clock Rate | 52 MSPS (up to 104 MSPS with divide‑by‑2) |
| Package | 121‑Lead Chip Scale Package Ball Grid Array (CSP_BGA) |
The AD6650 operates from 70 MHz up to 260 MHz.
It is used in PHS or GSM/EDGE single‑carrier diversity receivers, microcell and picocell systems, wireless local loop, smart antenna systems, software radios, and in‑building wireless telephony.
Both AVDD and DVDD must be 3.3 V, with a valid range of 3.0 V to 3.45 V.
Input IP2 is +43 dBm at 70 MHz IF, and input IP3 is –9.5 dBm at 70 MHz IF.
