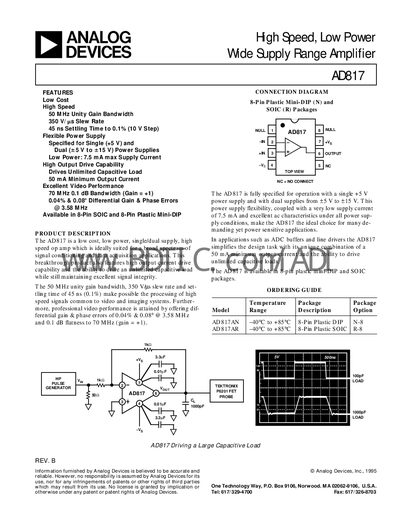

AD817 is a low cost, low power, single/dual supply, high speed op amp which is ideally suited for a broad spectrum of signal conditioning and data acquisition applications.
The AD817 is a high‑speed, low‑power operational amplifier designed for demanding video and imaging applications. It offers a 50 MHz unity‑gain bandwidth, 350 V/µs slew rate, 45 ns settling time to 0.1 % and can drive unlimited capacitive loads with a minimum output current of 50 mA.
Its flexible power‑supply options include single‑supply operation at +5 V or dual supplies from +5 V to +15 V, with a low quiescent current of 7.5 mA. The device is available in 8‑pin SOIC and 8‑pin Plastic Mini‑DIP packages, making it suitable for ADC buffers, line drivers, and high‑speed DAC output stages.
| Unity Gain Bandwidth | 50 MHz |
|---|---|
| Slew Rate | 350 V/µs |
| Settling Time (0.1 %) | 45 ns |
| Quiescent Supply Current | 7.5 mA max |
| Minimum Output Current | 50 mA |
| Short‑Circuit Output Current | 90 mA |
| Supply Voltage Range | Single +5 V or Dual +5 V to +15 V |
| Package Options | 8‑Pin SOIC, 8‑Pin Plastic Mini‑DIP |
It can run from a single +5 V supply or from dual supplies ranging from +5 V to +15 V.
The typical unity‑gain bandwidth is 50 MHz.
The op‑amp draws up to 7.5 mA of supply current.
