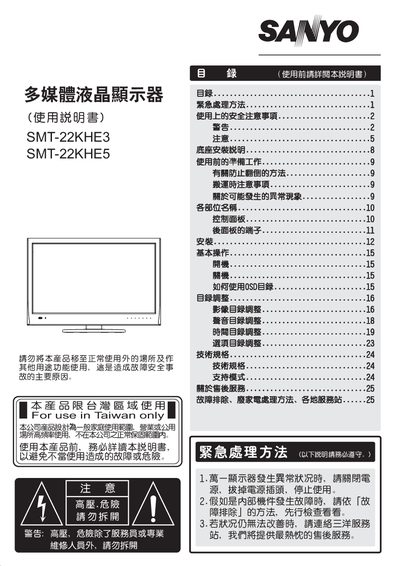

This manual is for Sanyo SMT-22KHE3 LCD display. The main contents include emergency handling methods, safety precautions, base installation instructions, preparation before use, anti-tipping methods, precautions when moving, parts names, control panel, rear panel terminals, installation, basic operations, power on, power off, how to use OSD menu, menu adjustment, image menu adjustment, sound menu adjustment, time menu adjustment, option menu adjustment, technical specifications, support modes, after-sales service, troubleshooting, waste electrical appliance handling methods, and local service stations.
This manual covers safety precautions for the Sanyo SMT-22KHE3/SMT-22KHE5 multimedia LCD, including warnings about fire hazards, proper handling, and environmental restrictions. It also details the required installation procedures, such as wall‑mounting by qualified personnel and correct positioning of the unit.
Operational instructions describe how to power the device, adjust brightness, contrast, volume, and time settings, and use the built‑in SD card. Technical specifications, service information, and a troubleshooting guide are provided to help maintain reliable performance. This manual is written in Chinese.
| Power Supply Voltage | AC 110 V |
|---|---|
| Operating Temperature Range | 5 °C – 35 °C |
| Design Safety Lifespan | 10 years |
Turn off the power, unplug the power cord, and stop using the unit.
The device should be used in an environment with a temperature between 5 °C and 35 °C.
Use an AC 110 V power source.
