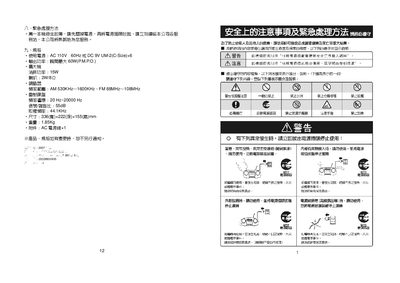

This document is the user manual of MP3-CD-radio, which introduces the product's functions, operation methods and precautions in detail.
The manual begins with safety and warning information, describing proper power handling, battery installation, and precautions to avoid fire, electric shock, or damage. It also lists troubleshooting steps for common issues such as low volume, distorted sound, or antenna problems.
The document then explains how to operate the radio, including AM/FM tuning, CD and MP3 playback, volume control, bass boost, and programming of track order. Detailed button functions, antenna adjustment, and power‑supply connections (AC 110 V or DC 9 V) are described, along with maintenance tips for cleaning and long‑term storage. This manual is written in Chinese.
| Power Input | AC 110V 60Hz or DC 9V |
|---|---|
| Power Consumption | 15W |
| Dimensions | 336 mm × 222 mm × 155 mm |
| Weight | 1.85 kg |
| Frequency Range | AM 530 kHz‑1600 kHz, FM 88 MHz‑108 MHz |
| Accessories | AC power cord (1 piece) |
It can be powered from AC 110 V 60 Hz or from a 9 V DC source.
Open the battery compartment, insert six AA batteries with the correct polarity as marked, then close the compartment.
Press the PROGRAM button while the radio is stopped, then use the CD controls to select tracks; the order is saved after confirming.
Check the power connection, verify battery polarity and charge, and ensure the antenna is properly positioned before restarting.
