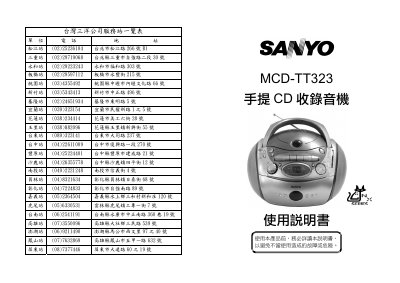

The instruction manual for Sanyo MCD-TT323 handheld CD recorder introduces the features and characteristics of the product and how to use it.
This manual covers all functions of the Sanyo MCD‑TT323 portable CD stereo radio cassette, including radio tuning, CD playback, cassette recording, and battery or AC power operation. Detailed steps are provided for recording from CD or cassette, programming playback order, and using features such as bass boost, random play, and repeat.
Safety warnings, cleaning procedures, and a troubleshooting guide are included to help maintain reliable performance. The specification section lists electrical requirements, speaker output, frequency ranges, dimensions, and weight of the unit. This manual is written in Chinese.
| Power Supply | AC 110V 60Hz / DC 12V |
|---|---|
| Power Output | 1.2 W RMS per channel |
| Power Consumption | 20 W |
| Speaker | 2 W / 8 Ω |
| Frequency Range (AM/FM) | AM 540‑1600 kHz, FM 88‑108 MHz |
| Frequency Response (Tape) | 125 Hz‑6300 Hz |
| Signal‑to‑Noise Ratio | 55 dB |
| Sampling Frequency | 44.1 kHz |
| Dimensions | 285 mm (W) × 260 mm (D) × 185 mm (H) |
| Weight | 2.4 kg |
| Manufacturing Year | 2005 |
Use a cleaning tape after about every 10 hours of use, or gently rub the heads with a cotton swab moistened with isopropyl alcohol.
The unit uses eight UM‑2 (C‑size) batteries, installed with correct polarity in the battery compartment.
