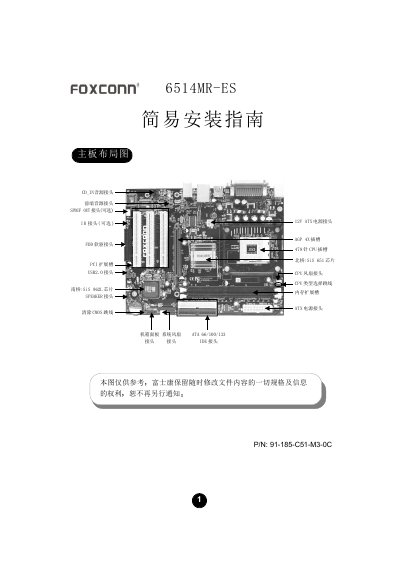

Foxconn 6514MR-ES Service Manual

This is the manual for 6514MR- ES motherboard. It introduces the features and usage of the motherboard.

Brand: Foxconn
Document type: Service Manual
Language: Chinese
Pages: 10
File format: PDF
File size: 342 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: F94715D9279B3C4544E8D00FF7242CF0
PDF: Foxconn 6514MR-ES Service Manual PDF

About this manual

The manual provides detailed information on the layout and function of the 6514MR-ES motherboard. It describes each connector type, including power, USB 2.0, VGA, AGP, audio jacks, and expansion slots, and explains how to configure BIOS settings such as CMOS options and CPU clock.

Technical sections cover supported CPUs (Intel Pentium 4 and Celeron families), memory types (DDR 266/333 up to 2 GB), the SiS 651/SiS 962L chipsets, and troubleshooting tips for common issues. The guide is intended for service technicians performing installation, maintenance, and repair tasks. This manual is written in Chinese.

What's inside

Connector Overview
CPU and Socket
Memory Support
Chipset Information
Expansion Slots
USB 2.0 Ports
Audio Connectors
Video Outputs
BIOS and CMOS Settings
Troubleshooting

Specifications

CPU Support	Intel Pentium 4, Celeron (Willamette/Northwood/Prescott)
Memory Type	DDR 266/333, up to 2 GB
Chipset	SiS 651 and SiS 962L

Frequently asked questions

What CPUs are supported by the 6514MR-ES motherboard?

It supports Intel Pentium 4 and Celeron processors of the Willamette, Northwood, and Prescott families.

How much DDR memory can be installed?

The board accepts DDR memory at 266 MHz or 333 MHz, up to a total of 2 GB.

Download PDF (342 KB)
