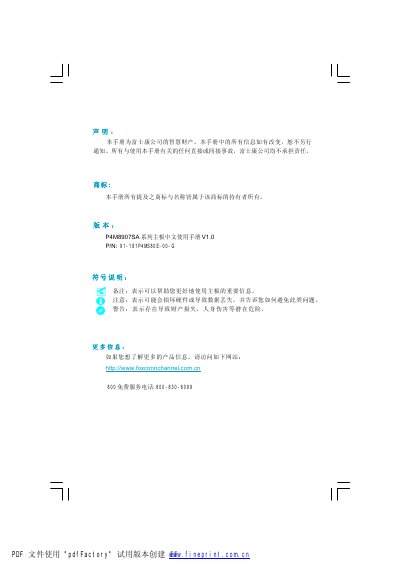

This manual is the intellectual property of Foxconn. It provides information on the usage and precautions of the P4M8907SA motherboard.
This manual provides detailed information about the Foxconn P4M8907SA series motherboard, including its main features, layout, and supported components. It also contains safety warnings, compliance statements, and contact information for Foxconn support.
The document guides users through BIOS configuration, driver installation, and system monitoring, with step‑by‑step instructions and diagrams for each hardware section. This manual is written in Chinese.
| Physical size | 216 mm × 203 mm (SFF) |
|---|---|
| Supported CPUs | LGA775 Intel Pentium D, Pentium 4 Extreme, Pentium 4, Celeron D |
| Front‑Side Bus | 533 MHz / 800 MHz / 1066 MHz |
| Chipset | VIA P4M890 (northbridge) + VT8237R Plus (southbridge) |
| Memory slots | 2 × 240‑pin DDR2 slots, up to 2 GB total, DDR2‑533/400 |
| USB ports | 8 × USB 2.0 (hot‑plug capable, 480 Mbps) |
| SATA interface | 2 × SATA ports, 150 MB/s, RAID 0/1/JBOD |
| LAN | 10/100 Mbps Ethernet |
| Onboard graphics | VGA via S3 UniChrome™ Pro |
| Expansion slots | 1 × PCI, 1 × PCI‑Express x4, 1 × PCI‑Express x16, 1 × F.E.S. |
The board provides eight USB 2.0 ports that support hot‑plug and 480 Mbps transfer speed.
It includes two SATA connectors with a maximum transfer rate of 150 MB/s and supports RAID 0, RAID 1, and JBOD configurations.
The motherboard has two 240‑pin DDR2 slots that can hold up to 2 GB of memory total, supporting DDR2‑533/400 modules.
