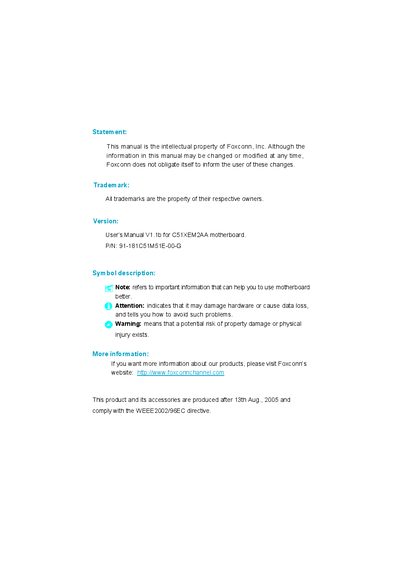

This is a user manual for C51XEM2AA motherboard of Foxconn brand
This manual covers all aspects of the Foxconn C51XEM2AA series motherboard, including its main and highlight features, layout, rear panel ports, and detailed installation instructions. It also explains BIOS configuration, power management, and system monitoring settings.
Additional sections describe driver and utility CD contents, supported CPUs, memory types, expansion slots, onboard audio, LAN, SATA, and firewire options, as well as an extensive appendix of POST codes and hardware initialization routines.
| Form factor | ATX 12" x 9.6" |
|---|---|
| CPU socket | AMD Socket AM2 |
| Memory slots | 4 x 240‑pin DIMM |
| Maximum memory | 8 GB DDR2 |
| Supported DDR2 speeds | 533/667/800 MT/s |
| USB ports | 10 USB 2.0 ports |
| SATA ports | 6 Serial ATA II connectors |
| RAID support | RAID 0, 1, 0+1, 5, JBOD |
| LAN | Dual 10/100/1000 Mbit/s Ethernet |
| Onboard audio | 8‑channel audio with S/PDIF |
| FireWire ports | 2 1394a ports, 1 1394b port |
| PCI Express slots | 2 × PCIe x16, 1 × PCIe x4, 1 × PCIe x1 |
The motherboard provides ten USB 2.0 ports.
It supports AMD Socket AM2 processors.
Yes, it supports RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.
There are six SATA II connectors.
