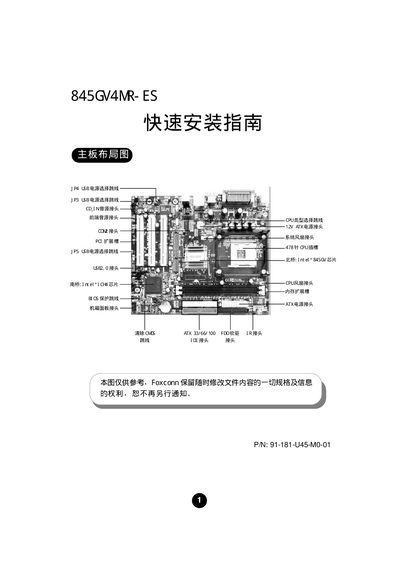

845GV4MR-ES motherboard quick installation guide, introduces the layout, interface, back panel, object list, CPU/memory compatibility, CMOS settings and other content
This service manual provides detailed information on the Foxconn 845GV4MR-ES motherboard, including hardware specifications, connector layouts, and BIOS configuration. It covers CPU support, memory limits, power requirements, and peripheral interfaces.
The document also includes step‑by‑step installation instructions, troubleshooting tips, and POST procedures to help technicians set up and maintain the board efficiently. This manual is written in Chinese.
| CPU socket | Socket 478 |
|---|---|
| Supported CPUs | Intel Pentium and Celeron (Willamette/Northwood/Prescott) |
| Front‑Side Bus | 400 MHz / 533 MHz |
| Maximum memory | 2 GB DDR |
| Memory type | DDR 266 MHz / 333 MHz |
| Power supply | 12 V ATX |
| IDE interface | ATA/IDE 33 MHz / 66 MHz / 100 MHz |
It uses a Socket 478 that fits Intel Pentium and Celeron processors.
Press the LED Reset button on the board to clear BIOS settings.
Front and rear audio jacks are provided, including line‑out, line‑in and microphone inputs.
