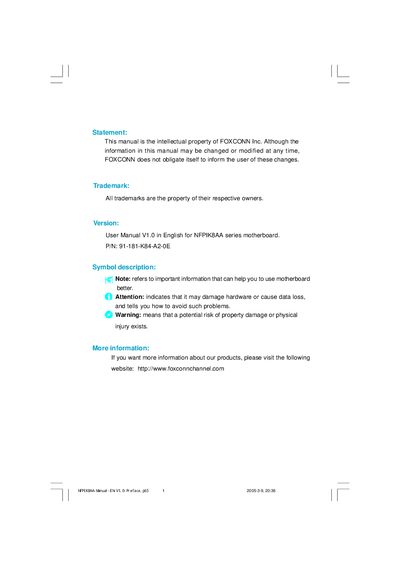

This manual is the English User Manual for NFPIK8AA series motherboard, introducing the features and usage methods of the motherboard.
This manual covers everything needed to install and operate the Foxconn NFPIK8AA series motherboard, including hardware layout, connector descriptions, and safety warnings. It also explains how to install drivers, configure BIOS settings, and use special features such as 8‑channel audio and RAID.
Key sections include product introduction, main features, motherboard layout, installation instructions, CPU and memory installation, power‑supply guidelines, BIOS description, integrated peripherals, power‑management setup, and an appendix on 8‑channel audio configuration.
| Form factor | ATX (12" x 9.6") |
|---|---|
| CPU socket | Socket 940 for AMD Opteron 100/200 series |
| Chipset | CK8-04-PRO + CK8-04-IO4 |
| Memory slots | Four 184‑pin DDR DIMM slots |
| Maximum memory | 4 GB |
| USB 2.0 ports | Ten (four rear, three onboard connectors providing six extra ports) |
| SATA support | Up to eight SATA II devices |
| Audio channels | 8‑channel surround sound |
It provides ten USB 2.0 ports – four on the rear panel and three onboard connectors that together give six additional ports.
The board supports an 8‑channel audio configuration for surround‑sound setups.
It can accommodate up to 4 GB of DDR memory across its four DIMM slots.
The motherboard can connect up to eight SATA II devices.
