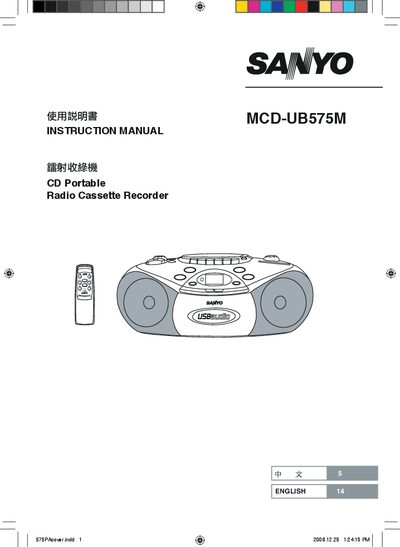

This is a user manual for CD player MCD-UB575M
This manual covers the safe operation of the MCD-UB575M portable CD/laser player, including warnings about invisible laser radiation, proper battery installation, and remote‑control usage. It explains how to use the various functions such as CD, USB, cassette, radio, and recording modes, and provides step‑by‑step procedures for playback, programming, and maintenance.
The document also lists the technical specifications of the unit, details cleaning and maintenance procedures for the tape heads and CD lens, and gives information on power requirements, dimensions, and weight. Safety and warranty notices are included at the end of the manual. This manual is written in Chinese.
| CD player channels | 2‑Channel stereo |
|---|---|
| Sampling frequency | 44.1 kHz |
| Laser output | 0.6 mW (continuous wave max.) |
| Laser wavelength | 790 nm |
| FM reception range | 87.5 – 108 MHz |
| AM reception range | 526.5 – 1606.5 kHz |
| Tape speed | 4.75 cm/sec |
| Frequency response | 80 – 12,000 Hz |
| General output power | 2 W/ch (DC max.) |
| Dimensions (W×H×D) | 410 × 167 × 286 mm |
| Weight | Approx. 2.8 kg |
Use a cleaning tape (available from an audio dealer) to clean the head block after about every 10 hours of use.
Load a blank cassette, tune to the desired station, press the REC button, then press STOP/EJECT to stop recording.
Blow off dust with a camera lens blower; never touch the lens directly.
