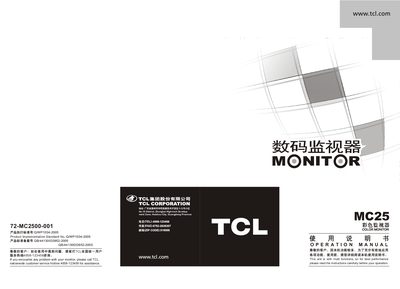

This document is the operation manual for TCL color monitor, which introduces the features, performance, usage instructions, and precautions of the product.
This manual covers safety precautions, key features, technical specifications, and detailed operating procedures for the TCL MC25 digital monitor. It includes instructions for power on/off, AV input connections, picture adjustments, system and browse settings, as well as remote‑control usage.
The document also lists the packing contents, provides a wiring diagram, and offers troubleshooting tips such as battery replacement for the remote control and proper ventilation to avoid overheating. This manual is written in Chinese.
| Supported AV standards | NTSC 3.58, NTSC 4.43, PAL |
|---|---|
| Video input level (Y) | 1.0 Vp‑p |
| Video input level (C) | 0.7 Vp‑p |
| Power consumption | 90 W |
| Operating voltage | 165‑250 V~, 50 Hz |
| Screen diagonal | 59 cm |
| Dimensions (W×D×H) | 590 mm × 553 mm × 484 mm |
| Weight | ≈38 kg |
Browse time can be set from 1 to 99 seconds in the BROWSE menu using the UP/DOWN buttons, then confirmed with the LEFT/RIGHT buttons.
