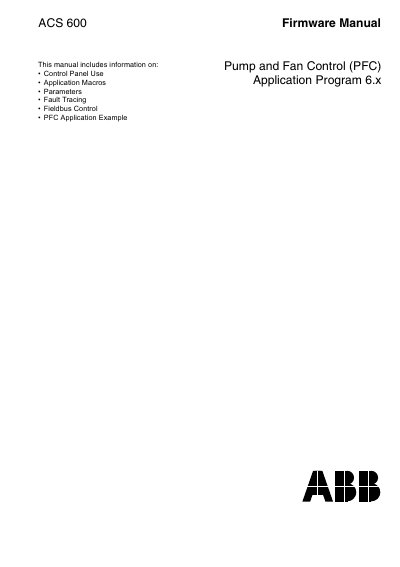

This manual is about the Pump and Fan Control (PFC) Application Program 6.x ACS 600 Firmware, including information on control panel use, application macros, parameters, fault tracing, fieldbus control, and a PFC application example.
This manual is intended for engineers and technicians who need to install, program, operate and service the ABB ACS 600 drive. It assumes knowledge of basic electrical wiring, components and ABB terminology, but no prior experience with the ACS 600 is required.
The document covers safety instructions, an overview of the CDP‑312 control panel, start‑up data, control operation, application macros, full parameter listings, fault‑tracing procedures and several appendices including complete parameter tables, a PFC application example and fieldbus control information.
| Output voltage pulse range | approximately 1.35 – 1.41 × mains voltage |
|---|---|
| Minimum motor nominal voltage | greater than one half of the ACS 600 nominal input voltage |
| Minimum motor nominal current | greater than 1/6 of the ACS 600 nominal output current |
| Capacitor discharge time before service | 5 minutes |
The ACS 600 includes several automatic reset functions that can reset the unit and resume operation after a fault.
The capacitors should be allowed to discharge for 5 minutes.
