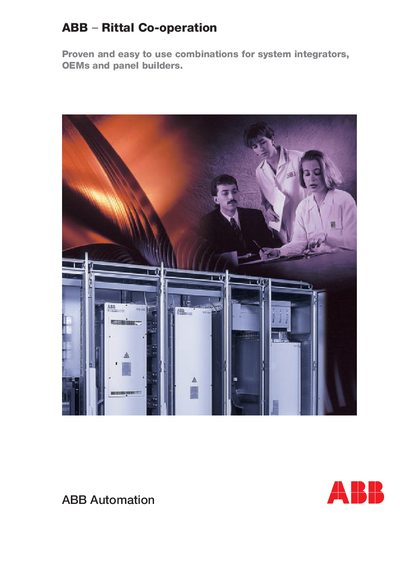

ABB and Rittal joint testing and documentation ensures tested and easy-to-use combinations for system integrators, OEMs and panel builders
The document presents the long‑term cooperation between ABB and Rittal, highlighting ready‑made, tested equipment combinations of ABB ACS 600 drive modules and Rittal TS cabinets. It explains how the joint effort provides easy engineering, fast ordering and complete assembly documentation for system integrators, OEMs and panel builders.
Testing was performed in ABB factories, including temperature tests with 15 probes on critical components under nominal current. Results showed that the cooling and electrical performance stayed within design tolerances, ensuring a longer lifetime for the combined system.
| Motor power range | 55 to 630 kW |
|---|---|
| Drive unit power range | 2.2 to 1120 kW |
| Maximum supply unit power | 12 to 3150 kW |
It provides tested equipment combinations, easy engineering and integration, ready‑made shopping lists, fast ordering and complete assembly documentation.
The equipment was loaded with nominal current, temperatures of critical components were recorded with 15 probes, and the thermal rise stayed within limits, confirming compliance with design tolerances.
