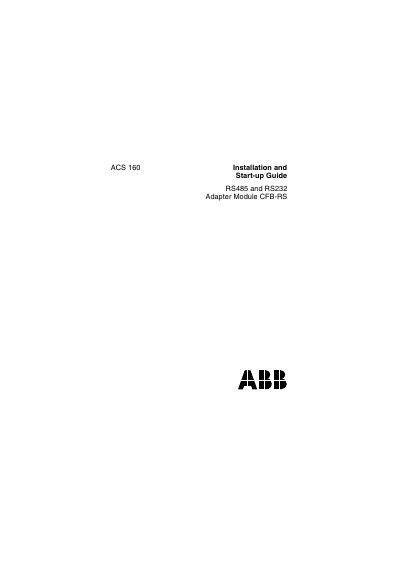

ABB ACS160 solutions manual

This manual introduces the installation and start-up of the ACS 160 series frequency converter RS485 and RS232 conversion module CFB-RS.

Brand: ABB
Category: Industrial Supply
Document type: Installation Guide
Language: English
Pages: 53
File format: PDF
File size: 418 KB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: ACS 160
MD5 checksum: 8DB462E0F8565E27BD6B0A8BC1F603C8
PDF: ABB ACS160 solutions manual PDF

About this manual

This guide explains how to install, commission, and troubleshoot the CFB‑RS RS485/RS232 adapter used with the ABB ACS 160 frequency converter. It includes safety warnings, delivery check, mounting instructions, and the steps required to configure the module for Modbus communication.

Technical data such as dimensions, IP rating, power consumption, and communication parameters are listed in the appendices, along with ambient condition limits for storage and operation. The document also covers programming the drive, Modbus register mapping, and fault‑tracing procedures.

What's inside

Safety Instructions
Introduction
Installation
Programming
Communication
Fault Tracing
Technical Data
Ambient Conditions

Specifications

Dimensions	124 x 79 x 42 mm (without cable glands)
Degree of protection	IP65
Current consumption	100 mA
Maximum bus length	1200 m
Transfer rates	300‑19200 bit/s
Connectors	Two Phoenix Contact MC 1,5/5‑ST‑3,81 (5‑pole, 1.5 mm² max)

Frequently asked questions

What safety precaution must be taken before installing the CFB‑RS adapter?

Verify that the ACS 160 drive is not powered before starting the installation and follow all safety instructions in the guide.

What is the maximum allowed bus length for the RS485 link?

The RS485 link can be up to 1200 m long.

How much current does the CFB‑RS module consume?

The module draws 100 mA of current.

What environmental protection rating does the adapter have?

The adapter is rated IP65, suitable for demanding environments.
