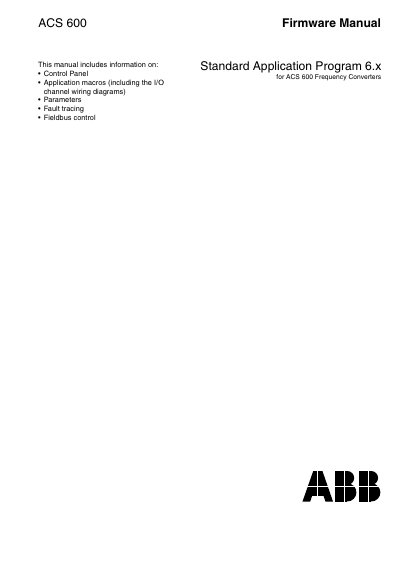

This manual is the firmware manual for the standard application program 6.x for ACS 600 frequency converters. It includes information on control panel, application macros, parameters, fault tracing, and fieldbus control.
This manual covers the safety requirements, control panel overview, application macros, and parameter groups for the ACS 600 frequency converter. It explains how to install, program, and operate the device, including fieldbus and Modbus communication.
Detailed chapters describe start‑up data, control operation, standard application macro programs, parameter settings, and fault tracing. Appendices give additional information on fieldbus control, analogue extension modules, and other optional features.
| Output voltage pulse amplitude | approximately 1.35 – 1.41 × mains voltage |
|---|---|
| Minimum motor nominal voltage | at least 0.5 × ACS 600 nominal input voltage |
| Minimum motor nominal current | at least 1/6 × ACS 600 nominal output current |
Yes, the ACS 600 includes several automatic reset functions that, when selected, reset the unit and resume operation after a fault.
No, operation is not allowed if the motor nominal voltage is less than one half of the ACS 600 nominal input voltage.
