This manual provides instructions on hardware installation, wiring, startup, and commissioning for the ACS 600 series frequency converters. It includes the content of EN 61201360, EN 61201394, and EN 61329005.

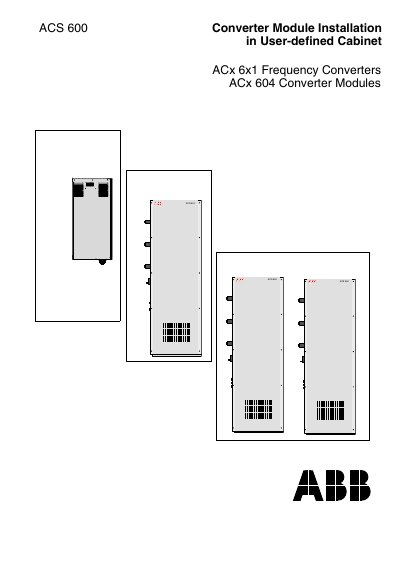

This manual provides the information needed to design, assemble and commission a user‑defined cabinet for ABB ACS 600 (ACx 6x1) frequency converter modules. It covers delivery checks, safety instructions, mechanical installation, cabling, EMC compliance and testing procedures.
Key sections include safety and grounding requirements, cabinet construction and clearances, cable selection, EMC shielding, input fuses and supply disconnecting devices, as well as dimensional drawings and installation checklists to ensure a safe and reliable installation.
| Power range (kW) – low | 2.2–110 kW |
|---|---|
| Power range (kW) – medium | 55–630 kW |
| Power range (kW) – high | 630–3000 kW |
| Protection rating (cabinet door open) | IP2x |
| Maximum mains power‑ups | 5 per 10 minutes |
Modules must be connected to the cabinet PE busbar with a copper busbar or cable; grounding via fixing screws or the door chassis alone is not sufficient.
A minimum air clearance of 12.7 mm must be left around all live contact bolts, busbars and any uninsulated live part.
