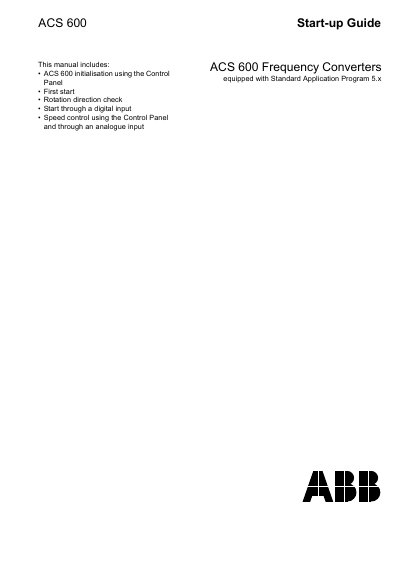

This Guide describes the basic start-up procedure of the ACS 600 frequency converter equipped with the Standard Application Program 5.x.
This guide provides the basic start‑up procedure for the ABB ACS 600 frequency converter equipped with the Standard Application Program 5.x. It covers safety precautions, power‑up, parameter configuration, motor data entry, and verification steps.
The document walks the user through rotation‑direction checks, speed‑limit settings, acceleration/deceleration times, and starting/stopping the drive via the control panel, digital inputs, or analog inputs. It also explains motor identification and ID‑run options for various application needs.
| Nominal voltage range | UN (415 VAC for 400 VAC units, 500 VAC for 500 VAC units, 690 VAC for 600 VAC units) |
|---|---|
| Nominal current range | 1/6·I2hd … 2·I2hd |
| Nominal frequency range | 8 … 300 Hz |
| Nominal speed range | 1 … 18 000 rpm |
| Nominal power range | 0 … 9 000 kW |
It must not be powered up more than five times in ten minutes to avoid charging resistor overheating.
