Colorful C.945GZ/GC Ver2.0 is a MATX motherboard that supports Intel® Socket 775 interface Pentium® D/ Core™2 Duo / Pentium® 4 / Celeron® D CPU, FSB 533/800MHz System BUS frequency, dual-channel DDR2 400/533 type memory, integrated Intel GMA 950 display core, 6-channel audio, integrated RTL8100C 10/100Mbps network card, strong expansion and high cost performance.
The Colorful C.945GZ/GC Ver2.0 motherboard uses the Intel 945GZ/945GC+ICH7 chipset and supports Intel® Socket 775 CPUs, dual‑channel DDR2 memory and a range of I/O interfaces. It provides one PCI Express x4 slot (GZ version) or one PCI Express x16 slot (GC version), four SATA2 ports, eight USB2.0 ports, and integrated AC’97 six‑channel audio and RealTek RTL8100C Ethernet.

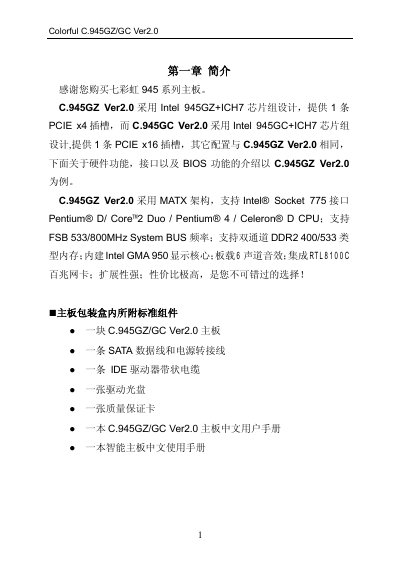

The manual includes hardware layout diagrams, jumper settings, BIOS configuration options, CMOS clearing procedures and BIOS upgrade instructions. It also lists the standard abbreviations used throughout the document and provides troubleshooting steps for common issues. This manual is written in Chinese.
| CPU socket | Intel® Socket 775 (Pentium D, Core 2 Duo, Pentium 4, Celeron D) |
|---|---|
| Chipset | Intel® 945GZ/945GC + ICH7 |
| Memory | 2×240‑pin DDR2 400/533 MHz, dual‑channel |
| SATA ports | 4 × Serial ATA2 (3 Gb/s) |
| USB ports | 8 × USB2.0 (compatible with USB 1.1) |
| PCI Express slots | 1 × PCI Express x16 (GC) or 1 × PCI Express x4 (GZ) |
| IDE channel | 1 × IDE (40‑pin) supporting two devices |
| Audio codec | Integrated six‑channel AC’97 codec |
| LAN | 1 × RJ‑45 10/100 Mbps Ethernet (RealTek RTL8100C) |
The board supports Intel® Socket 775 for Pentium D, Core 2 Duo, Pentium 4 and Celeron D processors.
It provides four Serial ATA2 high‑speed hard‑disk interfaces.
A six‑channel AC’97 audio codec compatible with AC’97 2.1 is built in.
Power off, disconnect ATX power, then short JCS2 pins 2‑3 for three seconds before restoring the jumper.
