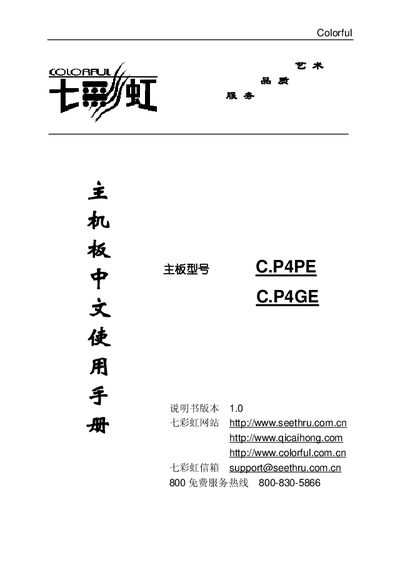

This document is the C.P4PE/C.P4GE motherboard user manual, which introduces the motherboard's functions, features, specifications, hardware settings, BIOS settings, etc.
This manual covers the hardware layout, component specifications, and required connections for the Colorful C.P4PE/C.P4GE ATX motherboard. It includes detailed instructions for installing the CPU, memory modules, AGP and PCI cards, as well as configuring BIOS settings and loading preset profiles.
Additional sections describe the supported processors, memory types, audio codec, USB ports, and power‑management features, and provide a troubleshooting guide for common error messages such as keyboard detection failures and memory test errors. This manual is written in Chinese.
| Supported CPUs | Intel Pentium 4 (Willamette, Northwood) and Celeron 4, Socket 478 |
|---|---|
| Front Side Bus | 533 MHz |
| Maximum Memory Capacity | 2 GB |
| AGP Slot | 1 × AGP 4X (1.5 V only) |
| PCI Slots | 5 × PCI slots |
| USB Ports | 6 × USB 2.0 ports |
| Audio Codec | 6‑channel AC'97 codec |
Check that the keyboard is properly connected and make sure no key is pressed during initialization.
The board provides six USB 2.0 ports.
It can support up to 2 GB of DDR memory.
It supports Intel Pentium 4 (Willamette and Northwood) and Celeron 4 CPUs using the Socket 478 socket.
