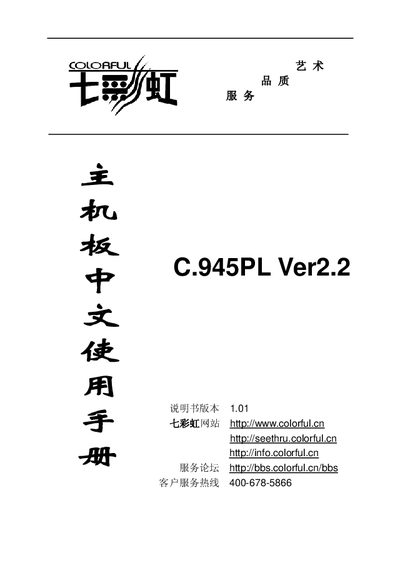

This document is the user manual of Colorful C.945PL motherboard, which introduces the specifications, hardware installation, BIOS settings, and driver installation of the motherboard.
The C.945PL Ver2.2 is a Colorful motherboard built on the Intel 945PL+ICH7 chipset, supporting Intel Socket 775 CPUs and dual‑channel DDR2 memory. It offers a range of peripheral interfaces including SATA2, USB 2.0, LAN, audio, and multiple expansion slots.
This manual covers the motherboard’s specifications, BIOS configuration menus, driver installation, and detailed connector layouts. It also provides contact information for technical support and warranty services. This manual is written in Chinese.
| CPU Socket | Intel Socket 775 |
|---|---|
| Supported CPUs | Pentium D, Core 2 Duo, Pentium 4, Celeron D |
| Chipset | Intel 945PL + ICH7 |
| Memory Slots | 2 × 240‑pin DDR2 1.8 V |
| Memory Type | Dual‑channel DDR2 400/533 MHz |
| SATA Ports | 4 × SATA2 (3 Gb/s) |
| USB Ports | 8 × USB 2.0 |
| COM Port | 16550 UART compatible |
| Audio Controller | Realtek ALC655 6‑channel |
| PCI Slots | 3 × PCI 2.2 compatible |
It supports the Intel Socket 775 for Pentium D, Core 2 Duo, Pentium 4 and Celeron D processors.
The board provides eight USB 2.0 ports.
A Realtek ALC655 six‑channel audio codec is built in.
