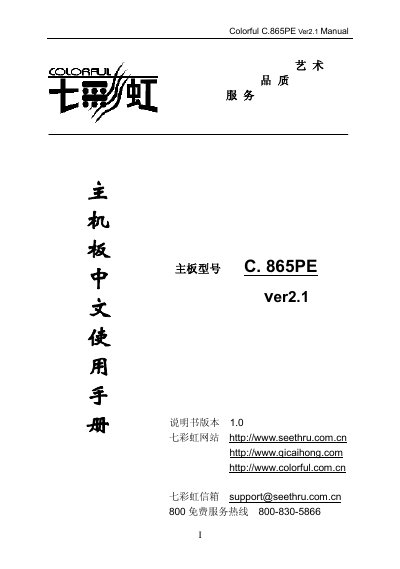

Colorful C.865PE Ver2.1 Manual is the user manual for C.865PE ver2.1 motherboard, which introduces the motherboard specifications, hardware settings, hardware installation steps, driver installation instructions, and BIOS settings.
The Colorful C.865PE Ver2.1 motherboard manual provides a complete guide to the board’s hardware features, supported CPUs, memory types, expansion slots and integrated audio. It includes detailed diagrams, part lists and step‑by‑step instructions for installation and driver setup.
The document also explains BIOS configuration, power‑management options, USB and AC'97 audio interfaces, and offers troubleshooting tips and contact information for technical support. This manual is written in Chinese.
| CPU Socket | Intel Socket 478 |
|---|---|
| Front Side Bus | 400/533/800 MHz |
| Maximum Memory | 2 GB DDR (dual‑channel) |
| DIMM Slots | 2 × 184‑pin DDR2.5 V |
| AGP Version | AGP 8X (0.8 V) |
| USB Ports | 8 × USB 2.0 (2 rear, 6 internal) |
| Audio Codec | Integrated AC'97 Codec |
| BIOS Type | Award BIOS with Flash ROM |
| Power Management | ACPI 1.0B & APM 1.2 |
The board can hold up to 2 GB of DDR memory using two 184‑pin DIMM slots in dual‑channel mode.
There are eight USB 2.0 ports – two on the rear panel and six internal ports that require a cable to connect.
