C.G946-MVP Ver2.0 is a motherboard that supports Intel Socket 775 interface Pentium D/CoreTM 2 Duo/Pentium 4/Celeron D CPU, supports FSB 533/800 System BUS frequency, supports DDR2 533MHz/DDR2 667 MHz memory module, supports integrated Intel GMA 3000 graphics display chip, onboard 8-channel sound, integrated RTL81100S gigabit network card, strong expansion, high cost performance.

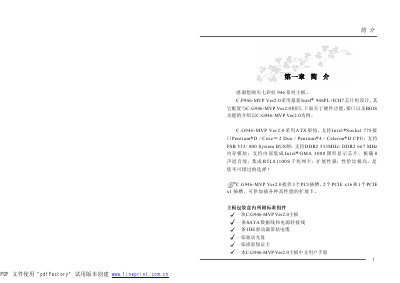

This manual introduces the Colorful C.G946-MVP Ver2.0 ATX motherboard, its supported Intel Socket 775 CPUs, DDR2 memory, integrated graphics and networking features. It provides step‑by‑step hardware installation instructions, jumper settings and connector wiring.
The document also details BIOS configuration options, troubleshooting codes, BIOS update procedures and a glossary of technical abbreviations to help users configure and maintain the board safely. This manual is written in Chinese.
| Form factor | ATX |
|---|---|
| CPU socket | Intel Socket 775 |
| Supported CPUs | Pentium D, Core 2 Duo, Pentium 4, Celeron D |
| Front‑Side Bus | 533 MHz / 800 MHz |
| Chipset | Intel 945GZ+ICH7 |
| Memory slots | 2 × 240‑pin DDR2 (533/667 MHz) dual‑channel |
| Integrated graphics | Intel GMA 3000 |
| IDE ports | 1 × IDE (ATA33/66/100, 2 devices) |
| SATA ports | 4 × SATA2 (3 Gb/s) |
| USB ports | 8 × USB (USB 2.0 compatible) |
| Network interface | Realtek RTL8110S Gigabit Ethernet |
Power off the system, unplug the ATX power, short pins 2‑3 of jumper JCS2 for about 3 seconds, then restore the jumper to pins 1‑2 and reconnect power.
The board supports Intel Socket 775 CPUs such as Pentium D, Core 2 Duo, Pentium 4 and Celeron D.
There are four SATA2 ports with a transfer rate of 3 Gb/s.
