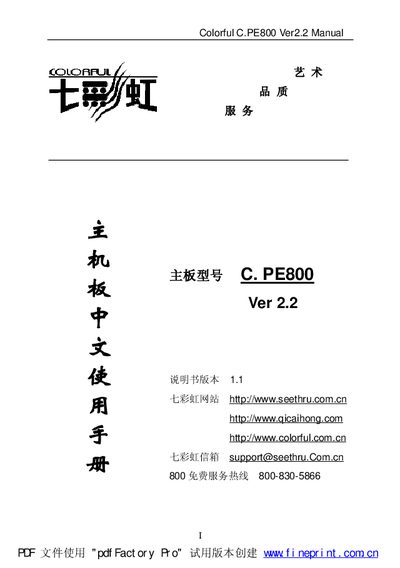

Colorful C.PE800 Ver2.2 Manual is the user manual of Colorful C.PE800 Ver 2.2 motherboard, which introduces the function features and installation and use methods of the motherboard.
The Colorful C.PE800 Ver2.2 is an ATX‑form factor motherboard built around the Intel 845PE chipset and Intel 82801DB I/O controller. It supports Intel Socket 478 Pentium 4 and Celeron 4 CPUs, up to 2 GB of DDR memory, and provides AGP 2.0, USB 2.0, and Realtek RTL8100B Ethernet connectivity.
The manual includes a detailed table of contents, hardware installation steps, BIOS configuration procedures, power‑management settings, over‑clocking options (Colorful Magic), and a glossary of motherboard abbreviations. Technical support contact information and warranty details are also provided. This manual is written in Chinese.
| CPU socket | Intel Socket 478 |
|---|---|
| Supported CPUs | Pentium 4 Willamette, Pentium 4 Northwood, Celeron 4 |
| Chipset | Intel 82845PE + Intel 82801DB (ICH4) |
| Memory slots | 2 × 184‑pin DDR2.5V DIMM, up to 2 GB |
| Maximum memory capacity | 2 GB |
| Supported memory types | DDR200/266/333/400 (2.5 V) |
| AGP slot | AGP 2.0, 1.5 V, 4× |
| USB ports | 6 × USB 2.0 (theoretical 480 Mb/s) |
| Network interface | Realtek RTL8100B, 10/100 Mbps |
| Form factor | ATX (300 mm × 174 mm) |
It uses the Intel Socket 478, supporting Pentium 4 Willamette, Pentium 4 Northwood and Celeron 4 processors.
The motherboard provides six USB 2.0 ports.
It can accommodate up to 2 GB of DDR memory.
A Realtek RTL8100B Ethernet controller offering 10/100 Mbps connectivity.
