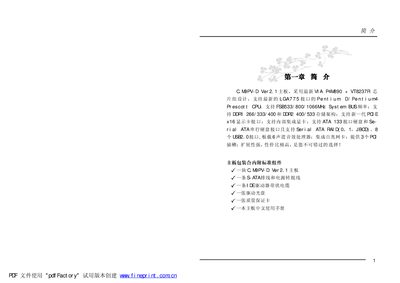

C.M9PV-D Ver2.1 motherboard uses the latest VIA P4M890+VT8237R chipset design, supports the latest LGA775 interface Pentium D/Pentium 4 Prescott CPU; supports FSB533/800/1066MHz System BUS frequency; supports DDR1 266/333/400 and DDR2 400/533 storage architecture; supports the new generation PCIE x16 video card interface; supports internal integrated graphics; supports ATA 133 interface hard disk and Se-rial ATA serial hard disk interface and supports Serial ATA RAID(0,1,JBOD),8 USB2.0 interfaces, on-board 6-channel audio processor; Integrated 100M network card; provides 3 PCI slots; strong scalability and high cost performance, is your choice!
The C.M9PV-D Ver2.1 motherboard uses the VIA P4M890 + VT8237R chipset and supports LGA775 Pentium D/Pentium 4 Prescott CPUs, DDR1/DDR2 memory, PCI‑E x16 graphics, SATA RAID and integrated 6‑channel AC'97 audio.
The manual provides step‑by‑step hardware installation, jumper and BIOS configuration, connector descriptions, and troubleshooting procedures such as CMOS clearing and BIOS updates. This manual is written in Chinese.
| Chipset | VIA P4M890 + VT8237R |
|---|---|
| CPU Socket | LGA775, supports Pentium D / Pentium 4 Prescott |
| Memory Support | DDR1 266/333/400, DDR2 400/533, up to 2 GB DDR2 |
| PCI‑E Slots | 1 × PCI‑E x16 |
| USB Ports | 8 × USB 2.0 |
| Audio | 6‑channel AC'97 codec |
| Ethernet | 10/100 Mbit integrated |
| SATA Ports | 2 × Serial ATA |
Short the JCS pins 2‑3 for about three seconds after powering off and unplugging the ATX power, then restore the jumper to pins 1‑2.
It supports Intel LGA775 processors, specifically Pentium D and Pentium 4 Prescott CPUs.
