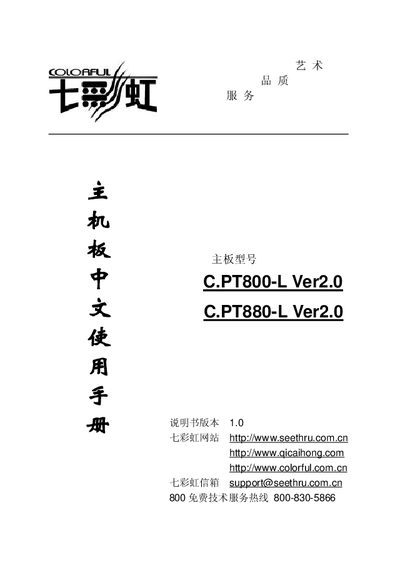

This manual introduces the hardware installation, BIOS settings and driver installation instructions for the Colorful C.PT880/PT800 motherboard, which is suitable for users of this motherboard.
This manual covers the Colorful C.PT800-L Ver2.0 and C.PT880-L Ver2.0 ATX motherboards. It includes an introduction, detailed specifications, hardware installation procedures, BIOS configuration, and driver installation guidance.
Key sections include processor support, chipset details, memory configuration, expansion slots, USB and SATA interfaces, power‑management features, and troubleshooting tips. The document also provides a glossary of motherboard abbreviations and technical support contact information. This manual is written in Chinese.
| Chipset | VIA PT880/PT800 with VT8237 I/O controller |
|---|---|
| Memory Slots | 2 × 184‑pin 2.5 V DIMM, up to 2 GB DDR200/266/333/400 |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 internal) |
| AGP Interface | 0.8 V AGP 8X (compatible with 1.5 V AGP 4X) |
| SATA Ports | 2 SATA 1.0 ports, 150 MB/s |
| Power Management | ACPI 1.0B and APM 1.2 support |
| Dual‑Channel Memory | Supported on C.PT880‑L Ver2.0, not on C.PT800‑L Ver2.0 |
The board provides eight USB 2.0 ports – four on the rear panel and four internal connectors.
No, the C.PT800‑L Ver2.0 version does not support dual‑channel memory, while the C.PT880‑L Ver2.0 version does.
