C.K8M800 VER1.4 motherboard adopts M-ATX architecture. It supports the latest Socket 754 AMD Athlon 64/Sempron processors, HT1.6GHz, DDR400 standard memory, and the north bridge chip uses VIA K8M800, cooperating with VIA VT8237 south bridge chip, 2.5V DDR DRAM is supported, 2 184pin DIMM slots are provided, and a maximum of 2GB of DDR400-spec DDR memory is supported. The on-board UniChrome Pro display core has a 128-bit 2D/3D engine. It supports AGP8X/4X and AC 97, Ultra DMA 133 interface hard disk and 2 Serial ATA serial hard disk interfaces that support Serial ATA RAID(0,1), 8 USB2.0 interfaces. 2 PCI slots and 1 AGP slot are provided to meet a large number of expansion needs.

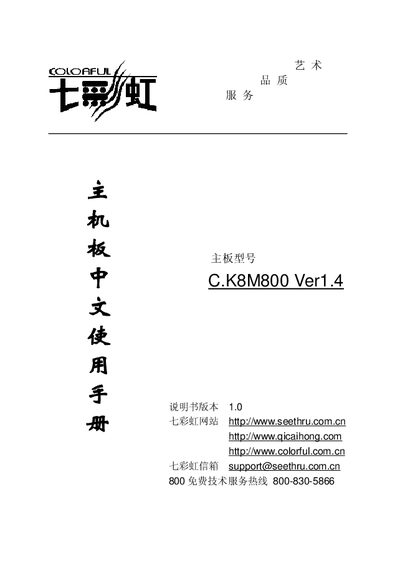

This manual describes the Colorful C.K8M800 VER1.4 motherboard, a micro‑ATX board built for AMD Athlon 64/Sempron processors on Socket 754. It lists the supported hardware, connectors, and provides reference tables for system builders.
Key sections cover processor support, chipset details, memory configuration, expansion slots, integrated graphics, audio functions, and a glossary of common terms used throughout the document. This manual is written in Chinese.
| CPU Socket | Socket 754 (AMD Athlon 64/Sempron) |
|---|---|
| Chipset | VIA KBM800 + VIA VT8237 |
| Memory Slots | 2 x 184‑pin DIMM, up to 2 GB DDR400 |
| Supported Memory Types | DDR SDRAM PC2100 / PC2700 / PC3200 |
| AGP Slot | 1 x AGP 3.0 (AGP8X/4X) |
| PCI Slots | 2 x PCI |
| SATA Ports | 2 x Serial ATA (RAID 0,1) |
| USB Ports | 8 x USB 2.0 |
| Audio Codec | Realtek ALC655, AC97 |
| Max CPU Frequency | 1.6 GHz (HT) |
It supports the latest Socket 754 for AMD Athlon 64 and Sempron processors.
The board has two 184‑pin DIMM slots that can hold up to 2 GB of DDR400 memory.
The board uses a Realtek ALC655 codec with AC97 support.
