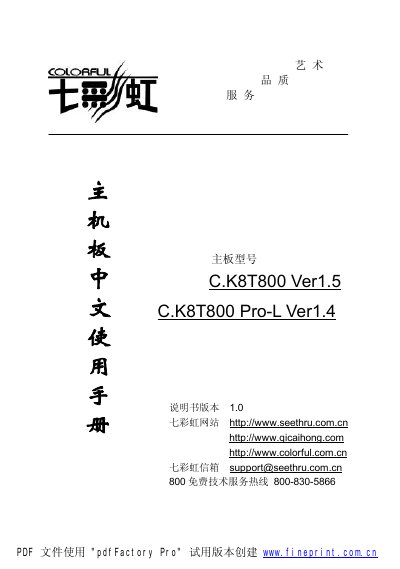

C.K8T800 Ver1.5 C.K8T800 Pro-L Ver1.4 Manual, introduces the specifications of the motherboard, processor, chipset, memory, audio function, expansion slots, Super I/O functions, power management, motherboard structure and other content
This manual provides a complete overview of the Colorful C.K8T800 (and C.K8T800 Pro‑L) ATX motherboard, including its supported processors, chipset details, memory configuration, audio and networking features, and expansion options. It also contains step‑by‑step hardware installation instructions and BIOS setup guidance.
The document is organized into sections such as board overview, specifications, processor support, chipset, memory, audio, expansion slots, power management, hardware installation, and BIOS settings, helping users configure and troubleshoot the motherboard effectively. This manual is written in Chinese.
| CPU Socket | Socket 754 AMD Athlon 64/Sempron |
|---|---|
| Chipset | VIA K8T800 (or K8T800 Pro) |
| Memory Slots | 2 DDR DIMM slots, up to 2 GB DDR400 |
| Expansion Slots | 1 AGP 3.0 (AGP8X) slot, 5 PCI slots |
| LAN | VT6103L 10/100M Fast Ethernet |
| IDE Ports | 2 IDE interfaces supporting Ultra DMA 66/100/133 |
| USB Ports | 8 USB 2.0 ports |
It supports the Socket 754 AMD Athlon 64/Sempron processors.
The board has two DDR DIMM slots that can hold up to 2 GB of DDR400 memory.
It offers one AGP 3.0 (AGP8X) slot and five PCI slots for expansion cards.
