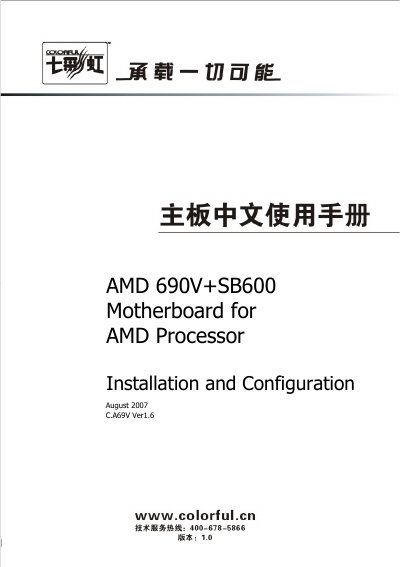

C.A69V Ver1.6 AMD 690V+SB600 Motherboard Installation and Configuration Manual, introduces the features, specifications, pre-installation preparations, hardware installation, driver installation, BIOS settings, etc. of the motherboard.
This manual provides step‑by‑step instructions for installing the Colorful C.A69V Ver1.6 motherboard, including safety precautions, component layout, and connector identification. It also covers driver installation and BIOS configuration for optimal system performance.
The guide lists all standard accessories supplied with the board, explains how to avoid static‑damage during handling, and offers troubleshooting tips for common POST errors. This manual is written in Chinese.
| Chipset | AMD690V+SB600 |
|---|---|
| Form factor | mATX |
| CPU socket | AMD Socket AM2 |
| Memory slots | 2 × 240‑pin 1.8 V DDR2 DIMM (dual‑channel) |
| Supported memory types | DDR2 400/533/667/800 |
| USB ports | 8 × USB 2.0 (4 require expansion) |
| Audio | 6‑channel audio codec |
| Network | Integrated 10/100 Mbps Ethernet |
The motherboard’s PS/2 mouse, PS/2 keyboard, parallel port, and audio connectors must face toward the rear panel of the computer case, aligning with the corresponding cut‑outs.
