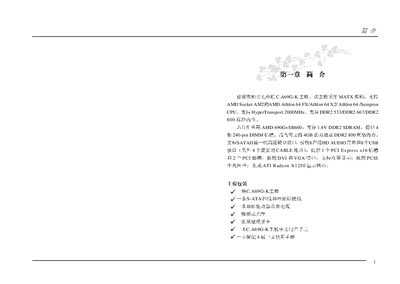

C.A69G-K is an AMD Socket AM2 MATX motherboard that supports AMD Athlon 64 FX/Athlon 64 X2/ Athlon 64 /Sempron CPU, supports HyperTransport 2000MHz DDR2 533/DDR2 667/DDR2 800, supports AMD 690G+SB600 1.8V DDR2 SDRAM, supports 4 240-pin DIMM 4GB DDR2 800, supports SATAII 8 HD AUDIO 8 USB 4 CABLE 1 PCI Express x16 2 PCI DVI VGA PCIE ATI Radeon X1250
This manual describes the features and installation procedures for the Colorful C.A69G-K motherboard, which is built for AMD Socket AM2 processors. It includes information on CPU installation, memory modules, expansion slots, and connector layouts.
The document also covers BIOS setup, power management options, and detailed pin‑out diagrams for SATA, USB, audio, and video interfaces, helping users configure the system and troubleshoot common issues.
| CPU Socket | AMD Socket AM2 |
|---|---|
| Supported CPUs | AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64 / Sempron |
| Chipset | AMD 690G + SB600 |
| Memory Type | DDR2 533/667/800 |
| Maximum Memory Capacity | 4 GB |
| PCI Express Slots | 1 × PCI‑Express x16 |
| PCI Slots | 2 × PCI, 1 × PCI‑Express x1 (DVI) |
| SATA Ports | 8 × SATAII |
| USB Ports | 8 × USB 2.0/1.1 |
| Audio Channels | 8‑channel audio |
It uses an AMD Socket AM2.
The motherboard provides eight USB 2.0/1.1 ports.
It supports DDR2 memory at 533 MHz, 667 MHz, and 800 MHz, up to 4 GB total.
The board uses the AMD 690G + SB600 chipset.
