MD380M series servo drive is mainly used for positioning, pulse synchronization and other occasions in machine tools, packaging, sheet metal and other equipment. It can drive high-response asynchronous motors to realize closed-loop control of the main shaft motor with encoder, and has the characteristics of fast response and smooth speed. It can cooperate with different upper computer systems (CNC numerical control system) to realize the main shaft stop, rigid grooving and other functions required by machine tools.

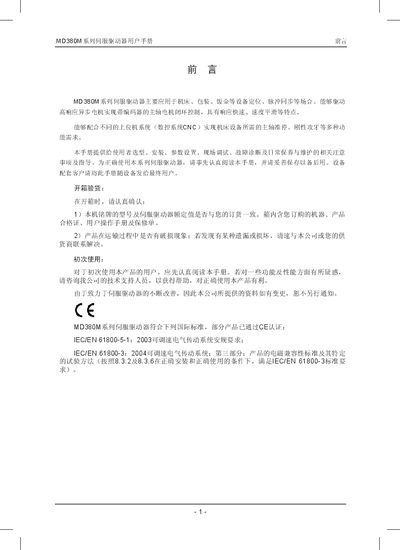

This manual introduces the MD380M series servo driver, which is used for positioning, pulse synchronization, and spindle control in machine tools, packaging equipment, and other applications. It covers selection, installation, parameter setting, on‑site debugging, fault diagnosis, and routine maintenance.
The document is organized into safety information, product specifications, mechanical and electrical installation, operation and display, function parameter tables, debugging steps, EMC compliance, fault diagnosis, and several appendices describing expansion cards and communication protocols, followed by warranty terms. This manual is written in Chinese.
| International Standard | IEC/EN 61800-5-1:2003 |
|---|---|
| International Standard | IEC/EN 61800-3:2004 |
| Warranty Period | 10 months |
| Recommended Motor Insulation | Class 8 or higher |
Use a motor with insulation class 8 or higher, ensure proper grounding, keep the driver away from flammable materials, and have a qualified electrician perform the wiring.
The product warranty period is ten months, provided the device is used according to the manual.
If any damage or missing items are found during unpacking, contact the company or your supplier immediately.
It complies with IEC/EN 61800-5-1:2003 and IEC/EN 61800-3:2004 standards.
