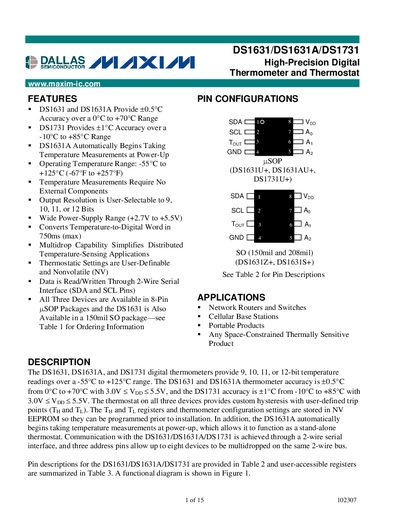

This datasheet provides the features of the DS1631, DS1631A, and DS1731 digital thermometers, including accuracy, temperature range, power consumption, and interface.
The DS1631 family provides high‑precision temperature measurement with selectable 9‑ to 12‑bit resolution and a built‑in thermostat. Accuracy is ±0.5 °C for the DS1631/DS1631A over a 0 °C to +70 °C range and ±1 °C for the DS1731 over –10 °C to +85 °C. Devices operate from a 2.7 V to 5.5 V supply and support multidrop on a 2‑wire serial bus, allowing up to eight devices on the same bus.
The datasheet includes ordering information, pin descriptions, electrical characteristics, register maps, and example command sequences for configuring continuous conversion, one‑shot mode, and thermostat operation.
| Temperature measurement accuracy (DS1631/DS1631A) | ±0.5 °C (0 °C to +70 °C) |
|---|---|
| Supply voltage range | 2.7 V to 5.5 V |
| Maximum devices on bus | 8 devices (multidrop) |
| Package types | 8‑Pin uSOP, 150 mil SO, 208 mil SO, 300 mil DIP |
The DS1631 provides ±0.5 °C accuracy from 0 °C to +70 °C.
It operates from 2.7 V to 5.5 V.
Up to eight devices can be connected on the same bus.
The default resolution at power‑up is 12 bits.
