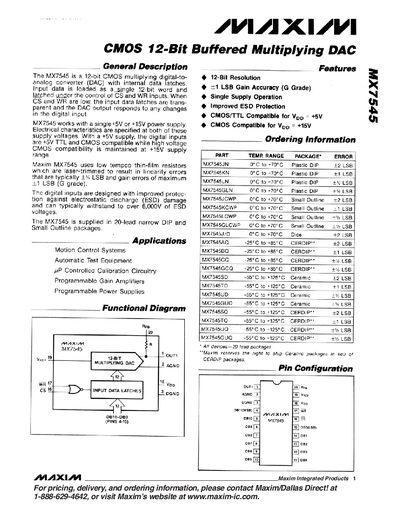

The MX7545 is a 12‑bit CMOS multiplying DAC with internal data latches, available in 20‑lead narrow‑DIP and small‑outline packages. It operates from a single +5 V or +15 V supply and offers CMOS/TTL compatible inputs for both voltage levels. The device includes improved ESD protection and can withstand over 6 kV of discharge.
The datasheet details absolute maximum ratings, static and dynamic performance, analog output and digital input specifications, and typical application circuits for unipolar and bipolar operation. It also covers recommended grounding, bypassing, and compensation techniques to achieve optimal accuracy and stability.
| Resolution | 12 Bits |
|---|---|
| Supply Voltage | +5 V or +15 V |
| Gain Error (G‑grade) | +20 LSB |
| Input High Voltage (Vpp = +5 V) | 24 V |
| Input High Voltage (Vpp = +15 V) | 13.5 V |
| ESD Protection | >6 kV |
The MX7545 can be powered from a single +5 V or +15 V supply.
The inputs are designed to withstand over 6 kV of electrostatic discharge.
The DAC provides a 12‑bit resolution.
