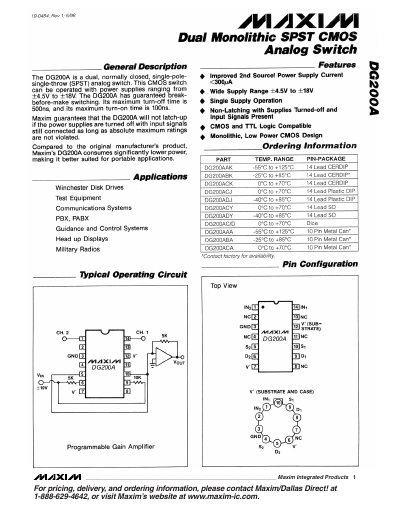

The DG200A is a dual, normally‑closed, single‑pole‑single‑throw (SPST) CMOS analog switch that operates from +4.5 V to +18 V. It offers guaranteed break‑before‑make switching, low power draw, and is suitable for portable applications such as disk drives, test equipment, communications systems, and military radios.
Key specifications include a maximum turn‑on time of 100 ns, turn‑off time of 500 ns, supply current under 300 µA, and various 14‑lead ceramic, plastic, and metal‑can packages. Ordering information and pin configurations are provided for each temperature‑rated variant.
| Supply Voltage Range | +4.5 V to +18 V |
|---|---|
| Maximum Turn‑On Time | 100 ns |
| Maximum Turn‑Off Time | 500 ns |
| Power Supply Current | <300 µA |
The DG200A operates from +4.5 V up to +18 V.
Typical applications include Winchester disk drives, test equipment, communications systems, PBX/PABX, guidance and control systems, head‑up displays, and military radios.
The maximum turn‑off time is 500 ns.
