The product is a RF transceiver IC for 802.11a/b/g wireless radios.

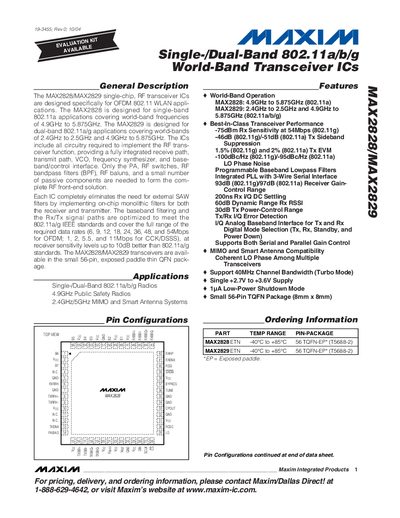

The MAX2828 and MAX2829 are single‑chip RF transceiver ICs designed for OFDM 802.11 WLAN applications. The MAX2828 targets single‑band 802.11a (4.9 GHz‑5.875 GHz) while the MAX2829 supports dual‑band 802.11a/g (2.4 GHz‑2.5 GHz and 4.9 GHz‑5.875 GHz). Both devices integrate the complete RF front‑end except for the PA, RF switches, filters and baluns, and are offered in a 56‑pin thin QFN package.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, pin configurations, and performance specifications such as Rx sensitivity (‑75 dBm at 54 Mbps), Tx sideband suppression (‑46 dB/‑51 dB), and dynamic range (60 dB Rx RSSI). Ordering information, package drawings, and chip process details are also included.
| Frequency range (MAX2828) | 4.9 GHz – 5.875 GHz |
|---|---|
| Frequency range (MAX2829) | 2.4 GHz – 2.5 GHz and 4.9 GHz – 5.875 GHz |
| Package | 56‑pin thin QFN (8 mm × 8 mm) |
| Supply voltage | 2.7 V – 3.6 V |
| Rx sensitivity (802.11g) | -75 dBm at 54 Mbps |
| Tx sideband suppression | -46 dB (802.11g) / -51 dB (802.11a) |
The MAX2828 operates in the 4.9 GHz to 5.875 GHz world‑band for 802.11a applications.
The MAX2829 supports dual‑band operation: 2.4 GHz‑2.5 GHz and 4.9 GHz‑5.875 GHz for 802.11a/g applications.
Both ICs are offered in a 56‑pin thin QFN package with an exposed paddle.
The devices operate from 2.7 V to 3.6 V supply voltage.
