3M's test and burn-in SOIC sockets have UL 94V-0 flame retardancy, rated current is 1A, insulation resistance is >1×1012W, rated operating temperature is -55°C to +150°C

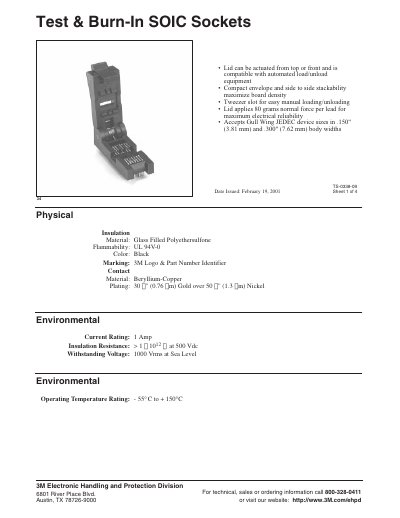

The 3M 34 Test & Burn-In SOIC Sockets are designed for burn‑in testing of JEDEC‑compliant SOIC devices. They feature a glass‑filled polyethersulfone insulation, UL 94V‑0 flammability, black color, and beryllium‑copper contacts with gold over nickel plating. Electrical ratings include a 1 A current rating, >1×10¹² Ω insulation resistance at 500 VDC, and a 1000 V rms withstanding voltage, operating from –55 °C to +150 °C.
Dimensions are provided for a range of body widths (.150" (3.81 mm) and .300" (7.62 mm)) and multiple part numbers. The lid can be actuated from the top or front, applies 80 g of normal force per lead, and supports automated loading. Ordering information and mechanical outlines are included for easy integration.
| Insulation Material | Glass Filled Polyethersulfone |
|---|---|
| Flammability | UL 94V‑0 |
| Color | Black |
| Contact Material | Beryllium‑Copper |
| Environmental Current Rating | 1 Amp |
| Insulation Resistance | >1×10¹² Ω at 500 VDC |
| Withstanding Voltage | 1000 V rms at Sea Level |
| Operating Temperature Range | -55 °C to +150 °C |
| Lid Force per Lead | 80 g normal force |
| Supported Body Widths | .150" (3.81 mm) and .300" (7.62 mm) |
The sockets use a glass filled polyethersulfone as the physical insulation material.
The sockets are rated for a continuous current of 1 Amp.
They accept JEDEC device sizes of .150" (3.81 mm) and .300" (7.62 mm) body widths.
The sockets operate from –55 °C up to +150 °C.
