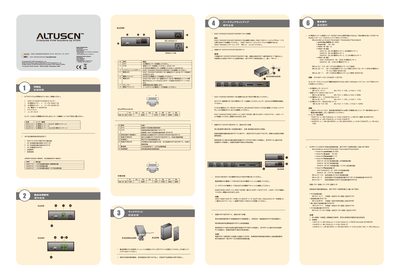

This guide explains how to install and connect the ATEN EA2110, EA2210 and EA2310 sensor units to a GNO116 controller. It covers mounting the units, wiring power and RJ‑45 connections, and configuring sensor parameters via the web interface.
The document also lists the included accessories, describes LED indicator functions, and provides sensor accuracy specifications for each model. This manual is written in Japanese.
| AC current sensor accuracy (EA2110) | +/- 4% (10 A and above), +/- 0.4 A (≤10 A) |
|---|---|
| Humidity sensor range (EA2110) | 30‑90 % RH |
| AC voltage sensor range (EA2310) | 80‑220 V ±1.5 % |
| Power LED indication | Lights when unit is powered and connected |
Connect the EA2310 RJ‑45 port to the GNO116 ports 31 and 32 with a Category‑5 LAN cable; the power LED will light to confirm the connection.
The EA2110 supports one AC current sensor and one humidity sensor.
The EA2210 can be connected to two AC current sensors.
