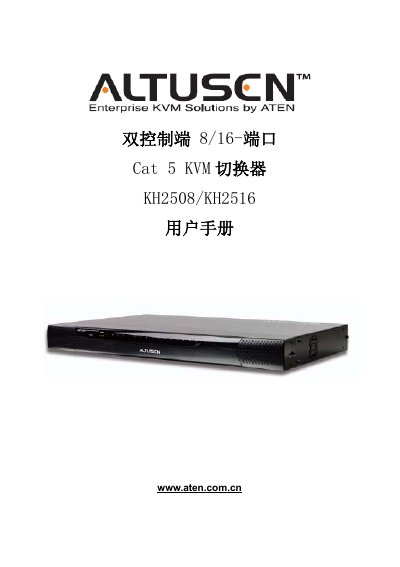

This manual introduces the features of the dual-control 8/16-port Cat 5 KVM switch KH2508/KH2516 and provides detailed instructions on its installation and operation.
This manual guides users through the complete setup of the ATEN KH2508/KH2516 Cat 5 KVM switch, covering hardware installation, rack‑mounting, cable connections, and safety precautions. It also explains basic operation, OSD navigation, hot‑plug handling, and keyboard emulation for Windows, Mac and Sun systems.
Additional sections describe automatic scanning, advanced configuration, firmware‑update procedures, troubleshooting, and warranty information, helping technicians and end‑users maintain reliable multi‑computer control. This manual is written in Chinese.
| Computer connections (KH2508/KH2516) | 8 / 16 ports |
|---|---|
| Maximum devices via daisy‑chain (KH2508/KH2516) | 512 / 4096 |
| KVM ports (RJ‑45) | 8 / 16 ports |
| USB ports on control end | 4 × USB Type‑A |
| Power supply connector | 1 × 3‑pin AC inlet |
| Firmware‑update connector | 1 × RJ‑11 |
The KH2508 supports up to 8 computers, while the KH2516 supports up to 16 computers.
