This document is a user manual for the KN9000 product, providing information on the FCC Class A certification and installation and operation procedures. The product is a FCC Class A device designed for commercial environments, but may cause radio interference in domestic environments. Users are required to install and use the equipment according to the instruction manual to prevent harmful interference to radio communications.

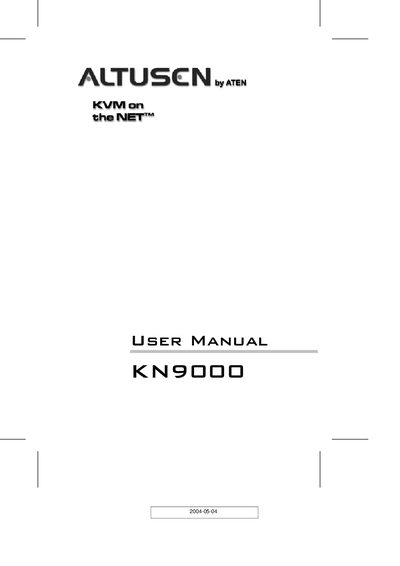

This manual covers everything needed to set up and use the Altusen KN9000 KVM‑over‑IP unit, including hardware setup, administrator utility, Windows and Java client software, and log server configuration. It also contains technical specifications, mounting instructions, and support information.
Appendices provide detailed connector specifications, stacking and mounting guidelines, and troubleshooting tips, while the technical support section lists phone numbers, email, and website resources for assistance.
| Keyboard connector (Console) | 1 x 6 pin mini‑DIN |
|---|---|
| Mouse connector (Console) | 1 x 6 pin mini‑DIN |
| Video connector (Console) | 1 x HDB‑15 |
| LAN port | 1 x RJ‑45 |
| Power input | 1 x 3‑pronged receptacle |
| Maximum video resolution | 1280 × 1024 @ 70 Hz |
| Operating temperature | 0 – 50 °C |
| Dimensions (L × W × H) | 432.4 × 254.2 × 44.2 mm |
The console panel includes a 6‑pin mini‑DIN keyboard connector, a 6‑pin mini‑DIN mouse connector, and an HDB‑15 video connector.
