This is a 256M x 64-bit (2GB) DDR2-800 CL6 SDRAM (Synchronous DRAM) 2Rx8 240-Pin DIMM memory module

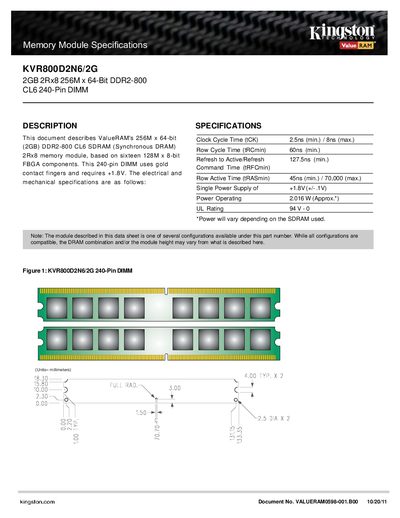

This datasheet provides the technical specifications for the Kingston KVR800D2N6/2G 2 GB DDR2‑800 CL6 memory module. It includes details on capacity, timing parameters, electrical requirements, and mechanical dimensions.
The document notes a single +1.8 V power supply (±0.1 V), an approximate power consumption of 2.016 W, and UL rating of 94V‑0. Various timing values such as tCK, tRC, and refresh times are also listed.
| Capacity | 2 GB (256M × 64‑bit) DDR2‑800 |
|---|---|
| Clock Cycle Time (tCK) | 2.5 ns min / 8 ns max |
| Row Cycle Time (tRCmin) | 6 ns min |
| Refresh to Active/Refresh | 127.5 ns min |
| Single Power Supply | +1.8 V (±0.1 V) |
| Power Consumption | 2.016 W (approx.) |
| UL Rating | 94V‑0 |
The module operates at a single +1.8 V supply with a tolerance of ±0.1 V.
It consumes approximately 2.016 W of power.
It is a 2 GB DDR2‑800 (256M × 64‑bit) CL6 memory module.
